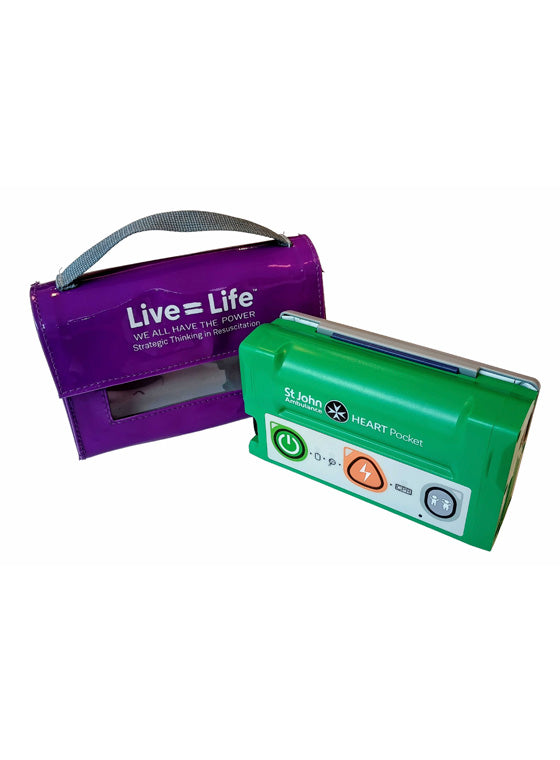

Pocket AED - Small, robust 650g mobile phone size

Simplicity in design

• Two button operation
• Clean interface
• Robust & Waterproof IP65
• Size of a mobile telephone
• Cyber secure
• GPS positioning (switchable on/off)
• Includes carry case

Easy to maintain

• Self tests daily, weekly and monthly
• Pads 5 years / LiH battery up to 3 years
• Choice of Rechargeable or disposable battery
• Carry case included

Integrity

• System integrity test on battery insertion
• Detects missing pads

Patient analysis system

• Automatically evaluates patient impendence for proper pads contact
• Monitors signal quality and analysis for patient ECG for shockable/non-shockable rhythms
• Meets AHA/ERC recommendations

Physical parameters

Size (height*width *length)

• 2.09in*3.39in*5.91 in
• 5.3cm*8.6cm*15cm

Weight (including battery)

• 1.54 lb. (0.7kg)

Tolerable impact/falling damage

• Free to fall from a height of 1.5 m on a hard surface

Environmental parameters

Operation condition

• Temp: -15°C to 50°C (Can work for at least 60 minutes after moving from room temperature to -20°C)
• Relative humidity: 0% to 95%, non-condensing
• Atmospheric pressure range: 50.4kPa to 106kPa

Storage condition

• Short-term Temp: -40°C to 70°C (Within one week)
• Long-term Temp: 0°C to 50°C
• Relative humidity: 0% to 95%, non-condensing
• Atmospheric pressure range: 59.4kPa to 106kPa

Transportation condition

• Short-term Temp: -40°C to +70°C (Within one week)
• Long-term Temp: 5°C to 50°C
• Relative humidity: 0% to 95%, non-condensing
• Atmospheric pressure range: 59.4kPa to 106kPa

Altitude

• 4500m

Defibrillation

Shockable Rhythm

• VT/VF

Waveform

• Truncated biphasic exponential waveform

Energy level

• Automatic pre-programmed selection
• (Adult mode: 150J; Pediatric mode: 50J)

Output control

• Manual operation (In rescue mode, the shock button should be pressed manually).

Operational impedance limitation of patient

• 200 to1800
