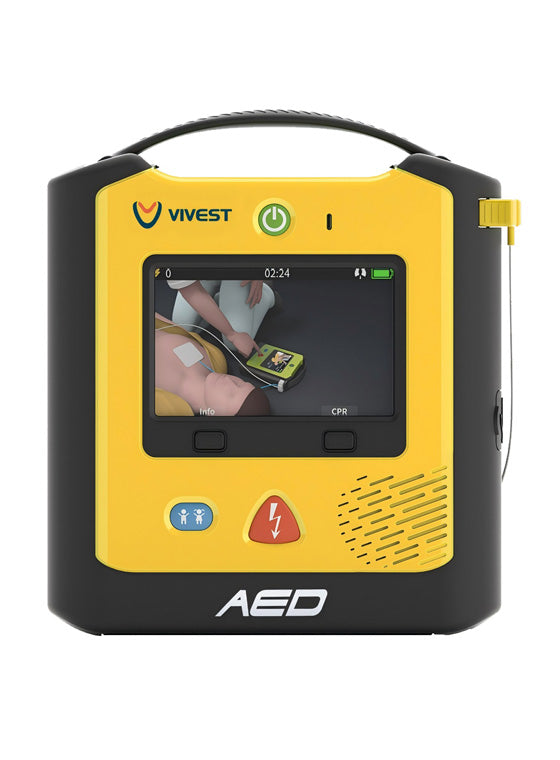

ViVest X1 AED - Advanced AED with visual screen and multi-language

Specifications

Defibrillator

Waveform: Biphasic Truncated Exponential (BTE) Waveform.

Impedance Range: 20Q - 180Q.

Energy Level:

Adults, energy released at 50Q impedance: 150J.

Child, energy released at 50Q impedance: 50J.

CPR Coaching: CPR instructions are available, with metronome and hand placement instructions.

CPR Protocol: Comply with ERC/AHA 2020 guideline.

Charge/Discharge Time: The time from the initial rhythm analysis to when the shock can be performed: 11 seconds.

Arrhythmia Analysis

Accuracy: Comply with IEC60601-2-4.

Analysis Time: Typically 7 seconds.

Controls

Shock Control: Semi-automatic (press the shock button to deliver energy).

Language Button (AED-3): Users can switch between primary, secondary and third language among various available language options.

Certification: 18013485, CE certification.

Safety Standard:

IEC 60601-1 :2005+AMD1 :2012+AMD2:2020 CSV

IEC 60601-2-4:2018

IEC 60601-1-2:2014+AMD1 :2020 CSV

EC 60601-1-12:2014+A 1 :2020 CSV

IEC 60601-1-11 :2015+A 1 :2020

User Interface

Display: AED-1 has 114 mm (W)x87 mm (A) graphic panel, while AED-3 has 5 inches colour LCD screen, 105 mm (W)x65 mm (BF).

Resolution: 800x480 pixels.

User Guidance: AED-1 has LED lights, graphic panel and voice prompt, while AED-3 has a colour LCD screen, animation, voice and bilingual text prompts.

Volume Adjustment: Volume is adjustable through APP.

Device Status Indicator: Visual and audible Indicators help to monitor the status of the main device, electrodes, and battery. Flashing green light indicates the device is normal. Flashing red light indicates the device is faulty.

Environmental Parameters

Operating/Storage Temperature:

-10°C - +50°C.

One Hour Operating Temperature

Limit (extreme cold}: -20°C.

Short-term Storage/Transport Temperature:

-40°C-+70C, within one week, with battery.

Long-term Storage/Transport Temperature:

5°C- 50°C,with battery.

Atmospheric Pressure: 59.4KPa-106KPa.

Relative Humidity: 5%-95% (no condensation).

Ingress Protection: IP55.

Physical Characteristics (including handle)

Height: 232mm

Width: 209mm

Depth: 59mm

Weight: 1 .5kg (including battery and pads).

Tolerable Impact/Fall Damage: Can withstand free fall damage from a height of 1.5M onto the hard surfaces.

Accessories (Battery)

Type: Lithium manganese dioxide (Li/MnO2) battery (non-rechargeable), 12V/3000mAh.

Capacity: At 20°C±2°C, the new battery can discharge 200± 10 times at 150J.

Operation Life (standby}: 5 years (typical).

Low Battery Status: A battery that indicates low battery can still be used ~30 times at 150J.

Accessories (Pads)

Pads: Suitable for adults and pediatrics.

Shelf Life: 5 years from manufacturing date.

Cable Length: 1.1 m.

Storage Space: Pads can be stored in the space at the back of the device.

Data Storage

Memory Type: Internal digital memory.

ECG/Event Storage: At least 8 hours of ECG and evenVincident recording.

Self-test Data Storage: Up to 10 years.

Communications

Communications:USB interface, Bluetooth.

Overall Device

Date of Production: See label at the bottom of main device.
